Lithium Battery Module

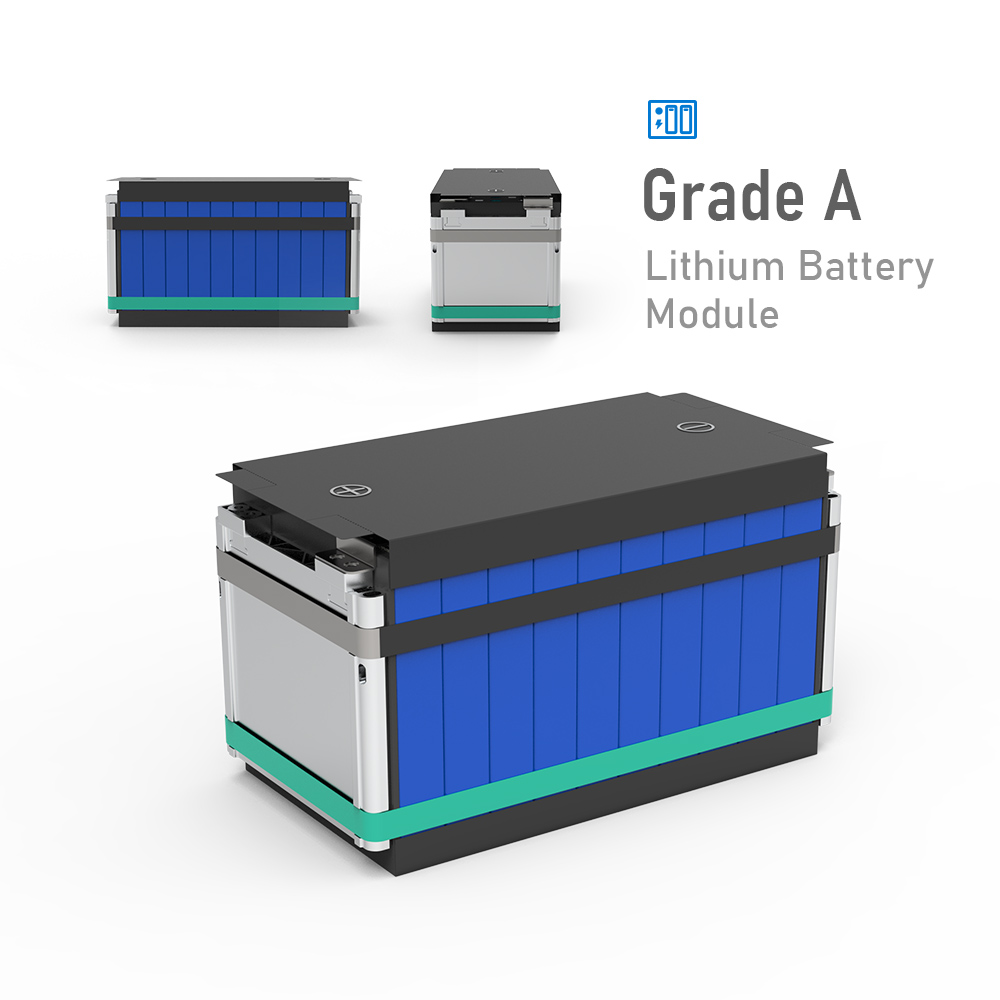

105AH Lithium Battery Module
● High energy density: the same weight or volume, lithium battery modules can store more energy;
● Long cycle life: after multiple charge and discharge cycles, the performance attenuation is small, reducing the cost of use;
● High safety: multi-layer safety protection design, including over-charge, over-discharge, over-temperature, short circuit and other protection functions, effectively prevent safety hazards;
● High consistency: the battery cells in the lithium battery module are strictly screened and matched, with high capacity, internal resistance, voltage, discharge curve and other consistency, to ensure stability and reliability;
● Customizability: Lithium battery modules can be customized according to different application scenarios and needs, including voltage, capacity, shape and other aspects of customization to meet the specific needs of customers;
-
Battery System:
Customized 1
-
Battery Dimensions:
Customized 2
-
Battesy Weight:
Customized 3
-
Adaptation type：
Customized 4
Safety
Needle puncture, short circuit, hightemperature, extrusion, drop test. Nofire or explosion.
Reliability
a. The actual lifespan so far hasexceeded 20,000 hours and still in good running condition with the remaining capacity still above 80%b. The failure rate of the products inthe last 10 years is ontrolled below3%c.Customer satisfaction rate is 100%
Stability
Vehicle standards,UN38.3MSDS etc
Productivity
Under 80% DOD when in use, and fullcharge once a weekit can increase thebattery life by about 20% theoretically
| Parameter entry | Detailed parameters (support customization) | ||||
|---|---|---|---|---|---|
Battery Model number |
1P8S-L105 |
2P4S-L105 |
4P2S-L105 |
3P4S-L105 |
5P2S-L105 |
Battery module parameters |
25.6V-105AH |
12.8V-210AH |
6.4V-420AH |
12.8V-315AH |
6.4V-525AH |
capacity（AH) |
105AH |
210AH |
420AH |
315AH |
525AH |
Dimensions（mm) |
340*132*210 |
340*132*210 |
340*132*210 |
484*132*210 |
412*132*210 |
Nominal voltage（V) |
25.6V |
12.8V |
6.4V |
12.8V |
6.4V |
Weight（KG） |
17.6±0.5kg |
17.6±0.5kg |
17.6±0.5kg |
26.4±0.5kg |
22±0.5kg |
Standard charging current(A) |
≤0.5C(Maximum 200) |
||||
Standard discharge current(A) |
≤1C(Instantaneous 3C10S) |
||||
Operating temperature range(℃） |
-20--55(Charging over 0℃以上） |
||||
Cycle life(time） |
80%DOD≥3000 times |
||||
